Authentik

Note

In order to use Authentik, you must be using SSL as outlined in this project.

This Authentik installation is based on the single application proxy provider configuration.

There are no authentik proxy containers defined in the docker-compose.yml file. This is because authentik will auto-detect the Docker socket and be able to start/stop its own proxy containers by using the configurations below.

Authentik is able to be controlled on a per-container basis, but requires a bit of configuration as outlined below.

Important Note

If you are using Cloudflare Tunnel AND you have disabled port forwarding to 80/443, you MUST create a new “public hostname” in Tunnel in order for SSO to work since the SSO server needs to be publicly accessible. If your Tunnel is online and working, follow step 4 when setting up Tunnel and configure it for the authentik-server:9001 container.

However, any containers configured to be accessible through the Cloudflare Tunnel will not be protected by Authentik if accessed via the Tunnel if you do not configure it as outlined in the ‘Authentik through Cloudflare Tunnel’ section below

Enabling Authentik on Individual Containers

1. Enable the authentik container in the Container Map

2. Set the authentik variable to true for the containers you want in the Container Map.

   a. Example using Sonarr:

   inventory/group_vars/all/container_map.yml

   hms_docker_container_map:
     sonarr:
       authentik: true
   ...

3. Run the playbook as normal

4. Once all containers are started, go to https://authentik.< domain >/if/flow/initial-setup/ to create the initial user and password to continue Authentik setup (if you changed the proxy_host_rule value for the authentik container, use that subdomain instead)

5. Configure an Application and Provider within Authentik

   1. Login

   2. Go to the Admin panel

   3. Expand Applications on the left

   4. Click Applications

   5. Click Create with Provider

   6. Give it the same name as the application (such as Sonarr), click Next

   7. Select the Provider Type of Proxy Provider, click Next

   8. Select the Authorization flow you prefer

   9. Select Forward auth (single application)

   10. Set the External host to the URL of the application (such as https://sonarr.< domain >)

   11. Click through the menus, customizing what you want, and finish

6. Configure an Application Outpost

   1. Do 1-3 (above in step 5, Login -> Admin Panel -> Applications) again

   2. Click Outposts and then Create

   3. Give it a name, the type is Proxy and integration should be the Local Docker connection

   4. Select the application you created in step 5 to associate it to

   5. Expand Advanced settings

      Tip

      IMPORTANT: copy the content of the file for the container generated in: /opt/hms-docker/apps/authentik/outposts/authentik-< container_name >-output.yml to your clipboard

      If a configuration file does not exist for the container you want, ensure you’ve enabled Authentik as outlined in steps 1 and 2

   6. Replace the configuration in the Authentik webpage with this generated configuration, otherwise stuff will not work correctly.

   7. Once you click create, it will automatically create a new authentik-proxy container that will handle authentication.

   8. It may take some time to download and setup the proxy, be patient

      Note

      This authentik-proxy container (and also any associated networks it’s connected to) will not be deleted if the Compose stack is removed since the container is not defined in the Compose file and the container is using those networks

7. Troubleshooting

   a. Using the Traefik and Portainer dashboards help a LOT during the troubleshooting process

   b. If you’re getting a 404 not found error, this is likely due to the authentik-proxy containers not working, running, or not being configured correctly. Check Portainer. If you just configured a new application outpost, wait a couple more minutes, but it should show in Portainer as well.

   c. If you’re getting a 500 server error, this is possibly due to having duplicate Traefik routes for the same host rules, check Traefik logs and/or Portainer logs for the correct authentik-proxy container.

   d. If you’re still having issues, feel free to join the Discord server to get help

Authentik Protection through Cloudflare Tunnel

Warning

This can expose your services publicly without authentication if not careful

This requires a large amount of work (creating Authentik Applications, Providers, and Outposts for each individual enabled container for full protection) and is (in my personal opinion) not recommended.

I would recommend using Tailscale as a VPN solution to access the services from only internally, but everyones use cases and environment are different. By proceeding, you understand the risks and potential impact.

Warning

This has not been fully tested as a “secure” solution. I am not responsible for any misconfigurations that may insecurely expose your applications. It is your responsibility to understand and accept the risks and implement security controls where possible.

You will also need to use a first-level subdomain for applications (such as app1.example.com), so your Traefik TLS/SSL should be issued for *.example.com, you cannot use deeper than one level (app1.sub.example.com). This is a limitation of Cloudflare Tunnel and requires you to purchase an Advanced Certificate for the hostname if you wish to do this.

This flow also bypasses the Traefik IP Allowlist controls since the request is seen as coming from the Tunnel container, which falls into the RFC1918 private address space

After deploying the Cloudflare Tunnel by following up to Step 4 in the Cloudflare Tunnel Docs, follow these steps:

1. Set the following variable in inventory/group_vars/all/authentik.yml to true:

   inventory/group_vars/all/authentik.yml

   hmsdocker_authentik_enabled_through_cftunnel: true

   a. This is HIGHLY recommended so that Authentik is enabled for containers by default

   b. Failing to enable this will mean containers are not forced to have Authentik.

   c. This will reduce the potential of accidental exposure without authentication or layers of security

2. Create a new Cloudflare Tunnel Published Application route with the following settings:

   a. Subdomain: *

   b. Domain: select your domain

   c. Service Type: HTTPS

   d. Service URL: traefik

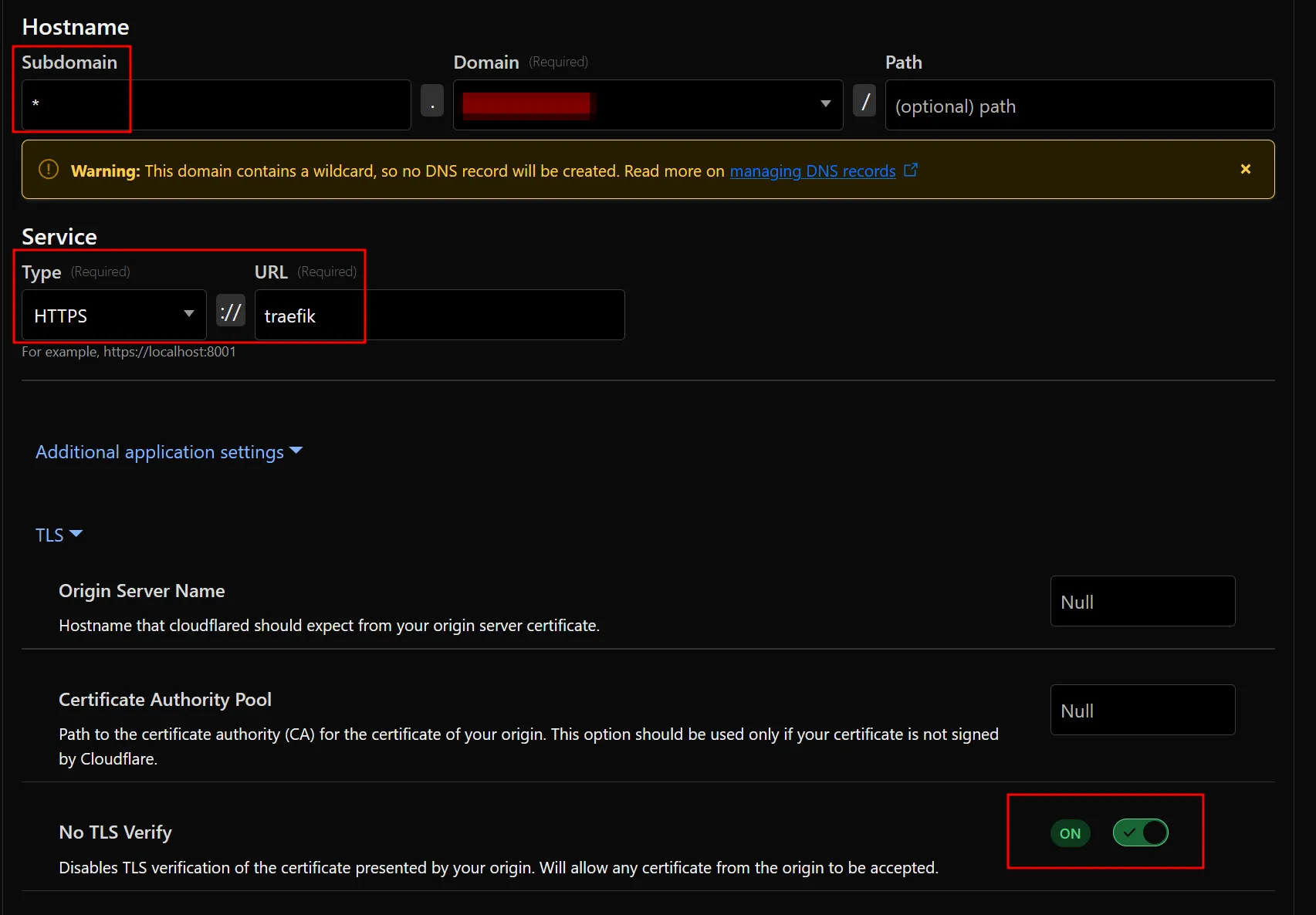

3. Enable “No TLS Verify” in the Advanced application settings under TLS:



4. Manually create wildcard DNS CNAME record for *.<domain> that points to <Tunnel ID>.cfargotunnel.com and make sure it’s proxied. You cannot create this record via the Tunnel dashboard

5. Test to see if it works

Warning

If you ever decide to disable/remove Authentik in the future, YOU MUST CLEAN UP THE CLOUDFLARE TUNNEL MANUALLY BEFORE DOING SO, otherwise services will be exposed to the public WITH NO PROTECTION through the Tunnel

How the Authentik secret keys are stored

There are 2 files created when enabling Authentik, .authentik.key and .authentik.pgpass within the project directory. These files store the Authentik secret key and Authentik postgres database password respectively. For security, these files are owned by root:root with mode 0600 so no one other than the root user can read/modify them.

These values are stored in these files for persistence since they are generated randomly upon first launch and are required for Authentik to work correctly. If these values are changed or lost, Authentik will no longer work and will need to be reset to defaults.

Since the .env file will be continually updated with new values and these 2 randomly generated values need to remain persistent, Ansible will read/slurp these 2 files created and retrieve the values, ensuring the values within the .env are the same each time during every playbook run.

To ensure these key and pgpass files are not changed by Ansible, force: no is set on the template resource that creates these files.

Upgrading Authentik

In Version 1.12, Authentik was upgraded from version 2025.2.4 to the current latest version, 2025.8.4.

If you’re installing after Version 1.12, this does not apply.

This Authentik upgrade introduced a Postgresql update from v12 to v16, which requires performing a manual database update and migration to the new version.

Wiping and Starting Fresh

If you do not want to do this and do not care to wipe Authentik and start from scratch, you can do the following:

cd /opt/hms-docker
sudo docker compose down

cd /opt/hms-docker/apps
sudo rm -rf authentik

docker volume rm -f hms-docker_authentik_database hms-docker_authentik_database_backup hms-docker_authentik_geoip hms-docker_authentik_redis

Then re-run the playbook using sudo make apply and follow the steps above in Enabling Authentik on Individual Containers

Performing Upgrade

The steps below have been adapted from these official docs: https://docs.goauthentik.io/troubleshooting/postgres/upgrade_docker/

Please note I am not responsible for any data loss during this process.

1. Comment out/remove these lines from the authentik-postgresql container in /opt/hms-docker/compose_files/authentik.yml (lines 6 and 7):

   /opt/hms-docker/compose_files/authentik.yml

   ...
   networks:
     - authentik_net

2. Add the following to an existing or new /opt/hms-docker/docker-compose.override.yml file:

   /opt/hms-docker/docker-compose.override.yml

   services:
     authentik-postgresql:
       image: postgres:12-alpine
       network_mode: none

     authentik-redis:
       image: redis:alpine

     authentik-server:
       image: ghcr.io/goauthentik/server:latest

     authentik-worker:
       image: ghcr.io/goauthentik/server:latest

3. Run the following commands to perform a backup of the existing database (this will take down Authentik during this process):

   1. Start containers with new override values:

      cd /opt/hms-docker
      sudo docker compose up -d

   2. Create directory to store backup

      # In /opt/hms-docker
      sudo mkdir authentik_upgrade_pg12 && sudo chown ${USER}:${USER} authentik_upgrade_pg12
      cd authentik_upgrade_pg12

   3. Perform postgresql dump to file

      # In /opt/hms-docker/authentik_upgrade_pg12
      sudo docker compose -f ../docker-compose.yml -f ../docker-compose.override.yml exec authentik-postgresql pg_dump -U authentik -d authentik -cC > upgrade_backup_12.sql

   4. Validate that the new upgrade_backup_12.sql file contains your data

   5. Stop only the authentik containers

      cd /opt/hms-docker
      sudo docker compose down authentik-postgresql authentik-redis authentik-server authentik-worker

   6. Create new volume for database backup

      docker volume create hms-docker_authentik_database_backup && docker run --rm -v hms-docker_authentik_database:/from -v hms-docker_authentik_database_backup:/to alpine sh -c 'cd /from && cp -a . /to'

   7. Danger

      This next command will delete the (now backed up) database, ensure the backup has the correct data before continuing

      docker volume rm -f hms-docker_authentik_database

4. Change the /opt/hms-docker/docker-compose.override.yml file to:

   /opt/hms-docker/docker-compose.override.yml

   services:
     authentik-postgresql:
       image: docker.io/library/postgres:16-alpine
       network_mode: none

     authentik-redis:
       image: docker.io/library/redis:alpine

     authentik-server:
       image: ghcr.io/goauthentik/server:2025.8

     authentik-worker:
       image: ghcr.io/goauthentik/server:2025.8

5. Run the following commands:

   a. Pull new images with the new override images and start and force recreate only the postgresql container:

   cd /opt/hms-docker
   sudo docker compose pull authentik-postgresql authentik-redis authentik-server authentik-worker && sudo docker compose up --force-recreate -d authentik-postgresql

   b. Import the backup into the new postgresql container

   cd /opt/hms-docker/authentik_upgrade_pg12
   cat upgrade_backup_12.sql | sudo docker compose -f ../docker-compose.yml -f ../docker-compose.override.yml exec -T authentik-postgresql psql -U authentik

6. Change the /opt/hms-docker/docker-compose.override.yml to (just removing the network_mode: none line):

   /opt/hms-docker/docker-compose.override.yml

   services:
     authentik-postgresql:
       image: docker.io/library/postgres:16-alpine

     authentik-redis:
       image: docker.io/library/redis:alpine

     authentik-server:
       image: ghcr.io/goauthentik/server:2025.8

      authentik-worker:
       image: ghcr.io/goauthentik/server:2025.8

7. Force recreate all Authentik containers with new images:

   sudo docker compose up --force-recreate -d authentik-postgresql authentik-redis authentik-server authentik-worker

8. Run the new version of the playbook using sudo make apply

9. Validate that Authentik is running, contains your data, and is on the latest version (2025.8.4)

10. Delete the docker-compose.override.yml file if not in use, otherwise remove the entries added for Authentik during this process

11. Run sudo docker compose up -d after removing or modifying the docker-compose.override.yml file

12. Once you’ve confirmed everything is working as expected, you can then remove the database backup volume by running docker volume rm hms-docker_authentik_database_backup
